|PUMP UNIT HFS HS150|
It is a mobile modular device with a drive and a pump with a hydraulic motor designed for long-distance water transport and fire-fighting purposes.
The HydroSub 150 pump unit consists of a lightweight portable hydraulically driven submersible pump equipped with a float, a 145 kW six-cylinder engine and 60 m of hydraulic hoses to drive the pump. The hydraulic drive and hoses allow the pump to access even very difficult water sources. Hydraulic hoses are composed wound on hydraulically driven winding drum. The device is also equipped with a hydraulically driven winch for the possibility of re-storage of submersible pumps.

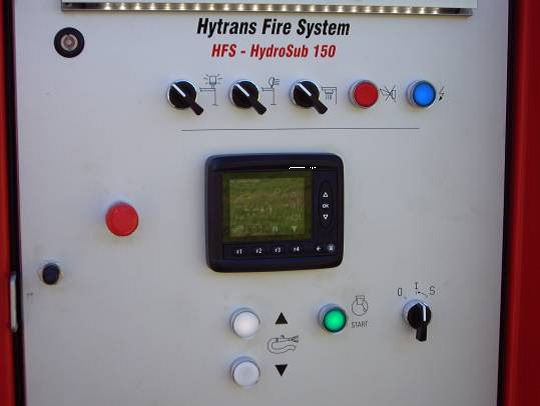

The control and monitoring panel is located on the side of the device. This ergonomically designed panel uses IQAN technology for easy control of the control unit. All important operating conditions are measured, evaluated and used to automatically control the operation of the device. The display shows the calculated water flow by the pump. If the measured values are found outside the limits of the permitted minimums and maximums, an alarm message is issued visually and audibly. If the operator does not respond to the message, the device automatically enters a safe mode, where it is still able to operate with high reliability.
The system uses internal component diagnostics so that in the event of a sensor fault, the HS150 remains active and uses the default values for the faulty sensor.
|Capacity:||2.500 l/min by 12,0 bar
3.000 l/min by 11,0 bar
4.500 l/min by 8,0 bar
(with impeller Hi-flow)
8.000 l/min by 2.1 bar
(with impeller Hi-flow)
11.000 l/min by 2.5 bar
(with impeller SuperHi-flow)
|Nominal dimensions:||4200x1060x1854 mm|
|Weight:||approx. 3.050 kg|
|Manipulation:||eyes for transport by helicopter
handles for handling with a forklift
|Device storage:||basic mini-container|
|Compatibility:||HFS Combi and DuoContainer|
|Other:||preparation for GSM network|
|Specification of pum unit HFS 3000|
|Material of pumping unit:||Aluminium and bronze|
|Material of impeller:||Aluminium and bronze|
|Material of frame:||Stainless steel|
|Weight:||approx. 115 kg|
|Output connection:||6” clutch Storz|
|Specification of pum unit HFS SHFL|
|This is an alternative pump with impeller,
which replaces the standard HFS-3000.
SHFL is used for higher water flows.
|Capacity:||11,000 ltr/min. by 2,5 bar.|
|Weight:||approx. 135 kg|
|Material of parts:||stainless steel AISI-316L|
|Material of impeller:||bronze RG 10/8810.2|
