It is a mobile modular device with three flood pumps and special hoses developed especially for the extreme water drainage conditions during a large-scale floods.



The main goal for the development of the "FloodModule" was creating a mobile unic providing flood relief on a large scale, driven by the Hytrans® HydroSub® 150.
The Floodmodule consists of three submersible pumps, necessary hydraulic hoses with manifold and 150 meter of special light weight flood hose. All this is carried in a standard container that fits on the Hytrans® Duo Container system. The FloodModule is and add on system to the Hytrans® HydroSub® 1050.
By replacing the standard submersible pump HFS3000, mostly used for firefighting, fot the FloodModule the combination is capable of reaching a capacity over 40.000 l/min.
The special low friction and light weight 12“ flood hose, made of PVC coated polyester, can easily be deployed by only one person. The separate hose lenghts are connected with a simple strap. Flood pump is designed for a large-scale flood drainage.

Technical specification
Nominal dimensions: 4200x1060x1800 mm
Weight: approx. 1900 kg
Maximum system capacity: to 40.000 l/min
Pumping unit: 3 x Flood pump
Manipulation: eyes for transport by helicopter
handles for handling with a forklift
Device storage: basic mini-container
Compatibility: HFS Combi and DuoContainer
system extension to HS150
Other: 15 x 10 meter light weight 12” hose
Material of pumping unit: Aluminium
Material  of impeller: Aluminium
Material of frame: Stainless steel
Material of hose: 12” PVC with polyester
Weight: approx. 130 kg
Output connection: 10” HFS MultiLug coupling
Engine: HydroSub 60
Removable pump frame and floats

Individual parts of the device

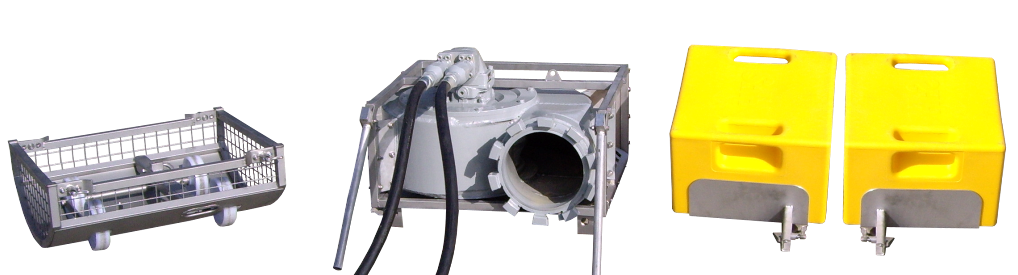

Removable pump frame, pumping unit and 2 floats

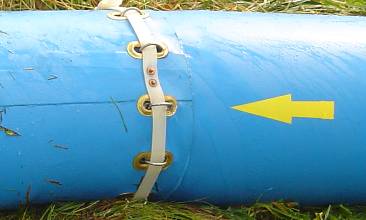

12“ special light weight hose with a simple strap and tape connector
